Centered Measure

Function Syntax CMeasure
Current Version 1.0
Download CMeasure.lsp
View HTML Version CMeasure.html
Donate

Program Description

This program is designed to emulate the behaviour of the standard AutoCAD Measure command, however, the resultant measured intervals are centered on the selected object, as opposed to extending along the object from one end.

As per the standard Measure command, the user has the option to place either Point objects or Blocks at measured divisons along the selected object, with the additional option to align the rotation of each block with the direction of the object at each point.

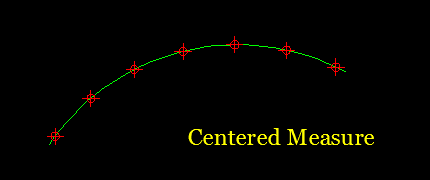

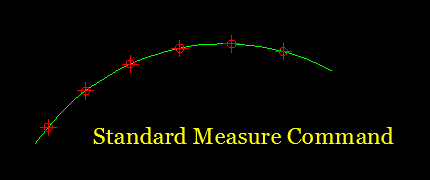

Example of Centered Measure Result

CMeasure1.png CMeasure2.png

Instructions for Running

Please refer to How to Run an AutoLISP Program.
